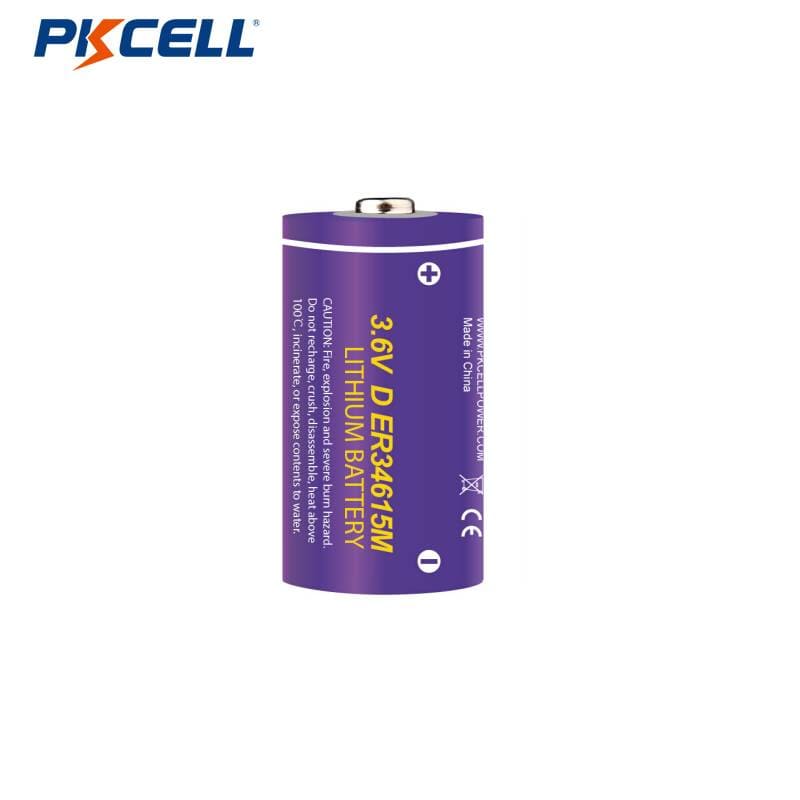

PKCELL ER34615M D 3.6V 16500mAh LI-SOCL2 Battery

Typical Applications:
Alarms and security systems, GPS, metering systems, memory back up, tracking system and GSM communication, Aerospace, Defence, Military, Power Management, Portable Devices, Consumer Electronics, Real-time clock, Tracking system, Utility metering,etc.
Specifications:
Model name: ER34615M
Size: D, Φ34.2mm*61.5mm(Max)
Nominal capacity: 16500mAh
Nominal voltage: 3.6V
Operating temperature range: -55°C to 85°C
Max Continuous Discharge current: 2000mA
Max Pulse Discharge current: 3000mA
Cut-off Voltage: 2.0V
Typical weight: 106g
Typical Shelf life: 10 years
Available Terminations: 1) Standard terminations 2)Solder tabs 3)Axial Pins 4)or special requirement(wire, connectors, etc)
Features:
1) High Energy density, High voltage, stable during most of the application’s lifetime
2) Wide range of operating temperature
3) Long self-discharge rate (≤1% per year during Storage)
4) Long storage life (10 years under room temperature)
5) Hermetic glass-to-metal sealing
6) Non-flammable electrolyte
7) Meet IEC86-4 safety standard
8) Safe to export MSDS, UN38.3 cert. available
Storage condition:
clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.

Warning:
1)These are non rechargeable batteries.
2)Fire, explosion and burn hazard.
3)Do not recharge, short circuit,crush, disassemble, heat above 100℃ incinerate.
4)Do not use the battery beyond the permitted temperate range.
