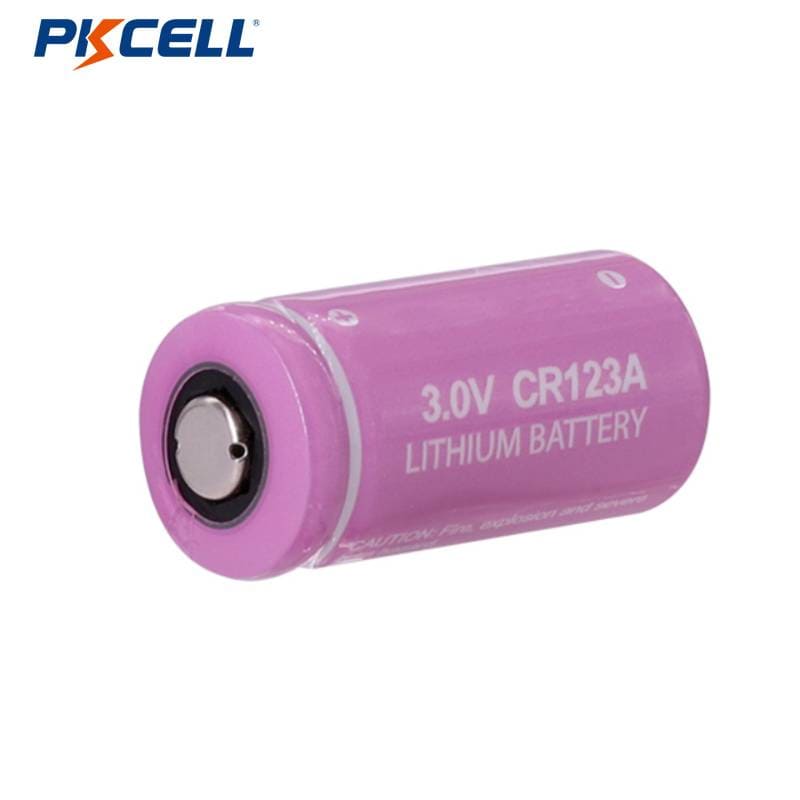

PKCELL CR123A 3V 1500mAh LI-MnO2 Battery

Short Description:

CR123A Nominal Voltage(V): 3.0 Max.
Dimensions(mm× Mm): φ 17.0× 34.5
Weight(g): 16
Standard Capacity Current(mAhmA):1400mAH/1500mAh
Continuous Discharge Current(mA):10mA to 2.0V at 20 ± 3°C
Operating Temperature(° C): -40~+85°C
Max Constant Current: 1500mA Max Pulse Current: 3000mA




Product Detail

FAQ

Product Tags

Lithium manganese dioxide cells have a metallic Lithium cathode (the lightest of all the metals ) and a solid manganese dioxide anode, immersed in a non-corrosive, non-toxic organic electrolyte. They deliver a voltage of 3V and are cylindrical, coin and soft pack in shape.

Applications:
1. Memory backup: CMOS memory, RTC(real time clock) and computer backup.
2. AMR utility meters: Electricity meter, gas meter and water meter etc.
3. Wireless alarm sensors: Smoke alarm systems, temperature monitors etc.
4. Remote monitor systems: GPS, sea buoys, lifejacket lights, lifecraft lights, cargo-locating systems etc.
5. Automotive and electronics: Automotive security systems, tire-pressure monitoring systems etc.
6. Electronics toll tags: Toll gates
7. Military electronics: Radio communication, night vision equipment, tracking and positioning systems etc.

Advantages:
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 1% per year at 25ºC)

Specification:

Cylindrical Li/MnO2 Battery
Model NominalVoltage(V) NominalCapacity(mAh) StandardDischargecurrent(mA) EndVoltage(V) Max.Diameter(mm) Max.Height(mm) ReferenceWeight(g) TestTemperature(°C)
CR17345(CR123A) 3v 1500.0 10 2 17.0 34.5 16 23±3
CR15H270(CR2) 3v 850.0 10 2 15.6 27.0 11 23±3
CR17335 3v 1500.0 10 2 17.0 33.5 16 23±3
CR14250 3v 650.0 10 2 14.5 25.0 10 23±3
CR14505 3v 1400.0 10 2 14.5 50.5 17 23±3
CR14335 3v 800.0 10 2 14.5 33.5 13 23±3
CR17450 3v 2000.0 10 2 17.0 45.0 25 23±3
CR17450 3v 2400.0 10 2 17.0 45.0 25 23±3
CR17505 3v 2300.0 10 2 17.0 50.5 28 23±3
CR17505 3v 2700.0 10 2 17.0 50.5 28 23±3
CR18505 3v 2500 10 2 18.5 50.5 35 20±3
CR11108(CR1/3N) 3v 160.0 1 2 11.6 10.8 3.3 23±3
CR-V3 6v 3000.0 20 2 29X14.5X52 34 23±3
CR9V 9v 1200 1 5.4v 48.5X36.5X17.5 29 23±2
CR26500 3v 5400 10 2 26.5 50.5 62 20±3
CR34615 3v 12000 10 2 34 61.5 125 20±3
CR-P2 6v 1400.0 10 4 34.8X35.8X19.5 34 23±3
2CR5 6v 1400.0 10 4 34X45X17 34 23±3
